imagen Enjuagadora rotativa modelo R12 botellas de vidrio

Rotary rinser to clean empty containers

 Rotary rinser to clean empty containers

imagen icono rinsers Traktech

Rotary rinser for plastic, can or glass containers, complete view, designed by Traktech SL
Carousel rinser cleaner for empty glass, metal and plastic containers from Traktech
Glass bottles entering the cleaning carousel of the rotary rinser

Description

The Rotary Bottle Rinser by TRAKTECH is a compact solution that enables the inside of empty glass, metal or plastic containers to be cleaned, using ionised air, effective for filling lines in companies producing 3,000 – 4,000 bottles per hour (bph).

The ingenious input system for containers in the Rotary rinser, that places the empty containers in a vertical carrousel, allows the surface dedicated to cleaning the containers be as small as possible. Production companies maximise productivity of their filling lines per square metre and improve the utility of the production area.

Product Sheet

Download rotary rinser product sheet PDF

Advantages of the rotary rinser by Traktech

Quick format change

Quick format change

The Rotary rinser by Traktech has a simple format changeover, requiring less than 5 minutes and no tools, enabling everything to be done by the same production personnel, as a result it lightens the work load of maintenance teams, speeds up the production process and significantly reduces the time needed in the filling line.

Compact solution

Compact solution

The Rotary rinser is a compact solution compared to the space it needs, guaranteeing the same cleaning efficacy in all types of empty containers as in traditional rinsers.

Saving costs

Saving costs

The rotary rinser by Traktech is an effective investment for companies with filling lines of around 3,000 – 4,000 bph.



How does the Rotary rinser by Traktech work?

  • The Rotary rinser receives the containers on a conveyor, puts them in a vertical carrousel that turns them 360º, during this movement, when the containers are upside down, the mouth of the container passes over 4 or 5 nozzles (according to the design of the container) with pressurised ionized air, generating an internal swirling and expelling any particles of dirt, depositing them in a box for collection in the same machine.
  • For the format changeover process of the rotary rinser, you only need to replace the inlet and outlet guide of the container on the carrousel and the plastic components that hold the containers in the vertical carrousel, secured with spring cotters.

For further information about our Rotary Bottle Rinser or any of our products, please contact us, using the following form.

Videos

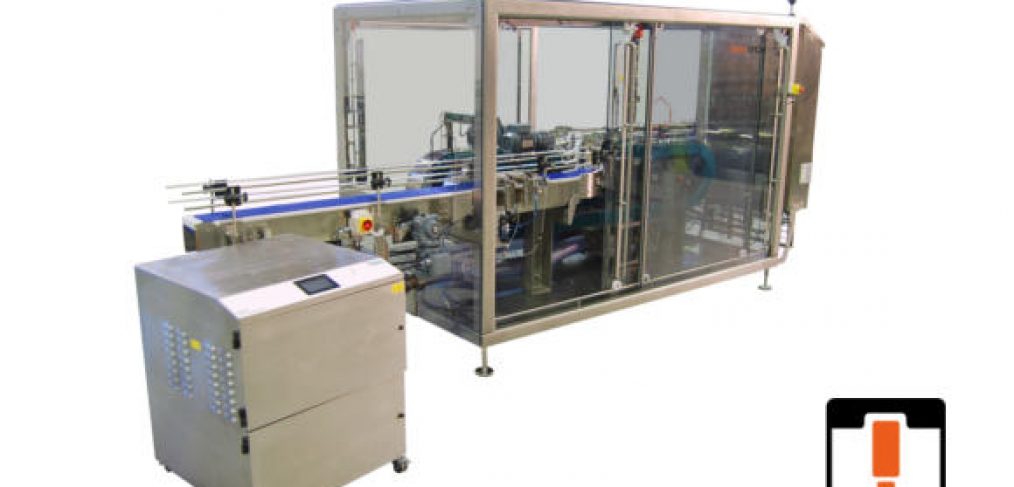

Enjuagadora Side-Grip soplado y aspirado aire ionizado

Side-Grip rinser with blowing and suction of ionized air

Side-Grip Rinser with blowing and vacuum of ionized air

imagen icono rinsers Traktech

Side-Grip rinser with blow and vacuum of ionized air full view of the Traktech equipment





Description

The Side-Grip Bottle Rinser Machine by Traktech have been developed to guarantee production companies perfect internal cleaning of empty glass, plastic or metal containers, through a dual simultaneous blowing and suction system with ionized air, which with its ion charge, enables air circulation inside the empty containers, expelling all the particles of dirt.

The series of Side-Grip rinser can be configured by input and output of empty containers, guaranteeing maximum cleaning.

Product sheet

Download Traktech RINSER Side-Grip PDF



Advantages of the Side-Grip rinser by Traktech

Flexibility

Flexibility

The Side-Grip rinser for empty containers system is the most flexible and adaptable on the market, due to its ingenious method for transferring containers through the adjustable side-grip conveyors.

Cost effectiveness

Cost effectiveness

The double width and height adjustment (regarding the blowing and suction nozzles) of the Side-grip rinser for empty containers makes it a flexible cleaning system, that can be used in all current formats used by production companies and probably future ones too, giving peace of mind to companies when deciding on present or future investments.

Adaptability

Adaptability

Its system adapts to the company’s production, simply by changing the input and output configuration for empty containers.

Easy to adjust

Easy to adjust

Format change in any Side-Grip rinser model is simple, without need for special tools or technical maintenance staff.

Side-Grip rinser models

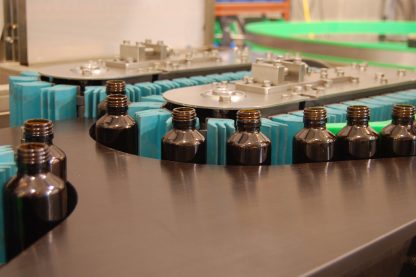

Side-Grip rinser SG-10

Side-Grip rinser SG-10

The Side-Grip rinser model SG-10 is characterised by having a single conveyor, for inlet and outlet of empty containers. A plastic guide moves the containers towards the side grip and returns them to the conveyor again.

The side-grip holds the empty containers, puts them upside down and moves them over the dual washing system with ionized air, so the circulation of ionized air inside will clean the container of any particles, even if the containers are charged with static electricity.

To format changeover, just change the plastic guide for each container and adjust the width of the side-grip. Both adjustments can be done without tools or the help of maintenance technicians.

The Side-Grip rinser model SG-10 is a compact solution with speeds of up to 10,000 bph and cylindrical bottles.

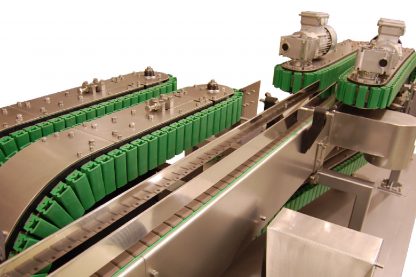

Side-Grip rinsers SG-20 and 30

Side-Grip rinsers SG-20 and 30

The Side-Grip rinsers SG 20 and 30 are characterised by having 2 conveyors, one for input and one for output. The containers enter the side-grip directly, so the format change just needs to adjust the width of the side-grip.

The SG-20 and 30 rinser range is useful for any container format and can reach speeds of up to 30,000 bph.

The Side-Grip SG-20 is built in such a manner that it has the same performance as the Side-Grip SG-30 rinser, with a more compact and economic design. The SG-30, with a longer cleaning length and straight conveyors to enter the side-grip, enables high speeds.

For further information about our Side-Grip Bottle rinser Machine or any of our products, please contact us, using the following form.



Videos





Twist Rinser for PET bottles

Twist Rinser for PET bottles

imagen icono rinsers Traktech

Description

The Twist Rinser, developed and patented by Traktech, is a system for cleaning the inside of PET (Polyethylene terephthalate) bottles, for companies with lines of high production.

It is the only rinser on the market installed on the air conveyor, located between the blower and the filler, significantly reducing production costs and possible incidents in the filling line.

Product Sheet

Download Traktech Twist Rinser PDF



Advantages of the Twist Rinser

Saving costs

Saving costs

It is a highly efficient investment, as it offers a very competitive development cost in comparison to a traditional rotary rinser for high production.

Rinser integrated in the air conveyor

Rinser integrated in the air conveyor

It avoids incidents in the filling line and improves production efficiency, as the Twist Rinser is integrated into the air conveyor, simplifying the design and avoiding an interface between the conveyor and the rinser.

Energy efficiency

Energy efficiency

It is a very efficient machine. The Twist Rinser does not require compressed air, water, or chemicals. In addition, it requires very little maintenance.

Ideal for updating packaging lines

Ideal for updating packaging lines

The Twist Rinser is also an ideal solution for companies with project to update or rehabilitate their filling lines, as it replaces an existing section of the air conveyor without modifying the current design of the production line.



How does the Twist Rinser work?

The TWIST RINSER cleans PET containers in production lines with high production, using the same air conveyor that links the blower and the filler.

On the route between the blower and the filler, 6 metres of the air conveyor are replaced with the Twist Rinser for PET Bottles by Traktech, which works at the same speed.

The Twist Rinser guides the PET containers through the neck ring, the same as the air conveyor, locating it upside down on a section of about 1 m, while at the same time it cleans it by injecting pressurized ionized air. This dual blowing and suction cleaning with ionised air generates a circular air current that removes any particle form inside the PET container.



The Ionised Air system in the Twist Rinser

In the Twist Rinser, the ionised air used in the cleaning counteracts the effects of static electricity that the particles of dirt could have, thus avoiding the dirt adhering to the sided of the PET container.

This ionised air is generated with the  IonRinse™system, which combines powerful CA ionisation with high level on-line filtration  to provide the maximum level of cleaning with ionised air .

Using high-volume and high-speed centrifugal as well as Hepa filters  with ionised air, the ionised air leaves the main unit and enters the containers by the air distributor. Airflow control combined with neutralisation of electrostatic charges detaches contamination form the internal walls of the container, which are collected by the flow of vacuum air.

For further information about our Twist Rinser for PET Bottle or any of our products, please contact us, using the following form.
